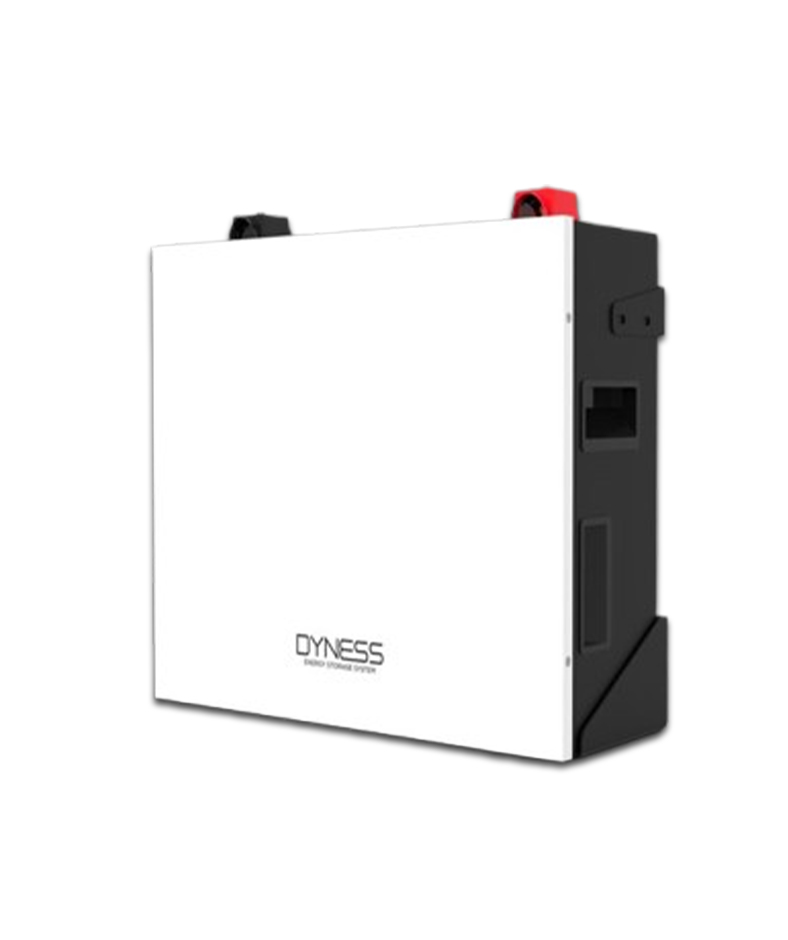

Dyness 4.8kwh lithium-ion battery

Dyness 4.8kwh lithium-ion battery

General Data
• Cell Technology: Li-ion(LFP)
• Battery Module Capacity: 4.8KWH
• Battery Module Voltage: 48VDC
• Battery Module Capacity: 100AH
• Battery Module Cell Quantity: 15 Cell
• Battery Cell Capacity: 320WH
• Battery Cell Voltage: 3.2VDC
• Battery Cell Capacity: 100AH
• Battery Module Cell Quantity in Series: 15 PCS
• Battery Module Charge Voltage: 54.75VDC
• Battery Parallel Capacity: 40 Units
• Communication: CANBUS / RS485
• Mounting: Wall Mount & Rack Mount

Battery Charge / Discharge Current
• 50A Recommended
• 75A Maximum
• 100A Peak @ 15S

Environment Limit
• Charge Condition: 0°C to 55°C
• Discharge Condition: -20°C to 55°C
• Relative Humidity: 5% to 85% (Non Condensing)
• Enclosure Protection: IP20

Dryness 4.8kwh lithium-ion battery description:

A48100 Dyness 4.8kWh Lithium-ion Battery pack comes with a battery management system that protects against overcharging, over-discharging and short circuits. The A48100 Dyness 4.8kwh lithium battery provides 48V of continuous output power for superior performance and reliability.

Introducing the Dyness 4.8kwh A48100 lithium battery, our newest energy storage solution for renewable energy systems. A48100 Dyness 4.8kwh is the perfect power backup. At a fraction of the weight and volume of other battery types, it’s ideal for projects that call for installation space and easy transportability.

Dyness A48100 is a 4.8 kWh lithium battery suitable for use with renewable energy sources, such as solar panels. The A48100 Dyness 4.8kwh lithium battery is a 4.8 kWh lithium battery that stores electricity generated by renewable energy sources, and stores it for later use when required. It is designed to offer the user complete independence from the National Grid.

A48100 Dyness battery is CE certified for both South Africa and Australia, with a 10-year warranty.

• The Dyness 4.8kwh A48100 lithium battery can be wall-mounted or stackable with battery brackets.
• Model: Dyness 4.8Kwh A48100.

Battery compatibility

Dyness A48100 Lithium-ion Battery is compatible with Deye inverters, Victron, Goodwe, Imeon, Solis, Lux Power, Sofar, MDE, Growatt, Voltronic, and Sunsynk inverters.

What is the DOD of this A48100 Dyness battery?

The Dyness BX48100 4.8-kWh lithium-ion battery with an 80% DOD is designed for off-grid applications requiring long-duration storage with an optimal daily cycle.
